MVH504XAH Spare Replacement Parts

Image for illustrative purposes only, variations may differ.

Finding and selecting your part is as easy as 1-2-3

There are no variations of this model,
please skip to step 2 below.

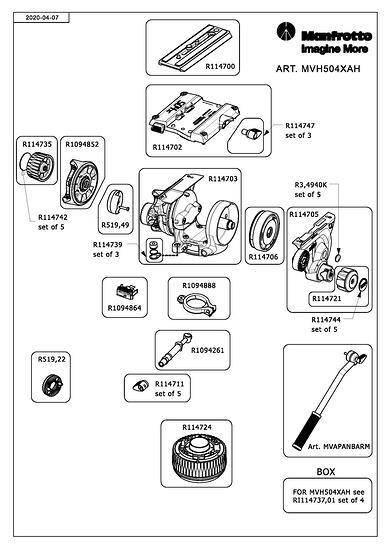

Identify the part using the diagram
Hover or tap the image to zoom in.

Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.

Add accessories to your basket.

1 Model Number


2 Identify The Part

Hover over or tap the image to zoom, or download the full PDF

4 Accessories

3 Add The Part To Your Basket

Available Parts. Type the part number below in order to filter this list:


$317.66 (Ex VAT) R114724 R114724. Panoramic Sub Assembly

$10.29 (Ex VAT) R114711 R114711. Pan Brake Knob

$19.25 (Ex VAT) R519,22 R519,22. Ass Locking Casting

$70.37 (Ex VAT) R1094864 R1094864. PCB Assembly

$40.95 (Ex VAT) R1094261 R1094261. Pan Brake Pin

$12.37 (Ex VAT) R114744 R114744. Counterbalance label (1)

$25.29 (Ex VAT) R114721 R114721. Counterbalance Knob

$62.55 (Ex VAT) R1094888 R1094888. Pan Brake

$67.85 (Ex VAT) R114706 R114706. Counterbalance sub-assembly

$163.14 (Ex VAT) R114705 R114705. Right Side Plate

$46.20 (Ex VAT) R3,4940K R3,4940. Label Set Of 2

$24.74 (Ex VAT) R114739 R114739. Levelling System

$12.34 (Ex VAT) R114742 R114742. Drag Label (1)

$12.12 (Ex VAT) R519,49 R519,49. Plug

$374.97 (Ex VAT) R114703 R114703. Tilt Assemble

$41.72 (Ex VAT) R114735 R114735. Tilt Drag Knob

$87.90 (Ex VAT) R1094852 R1094852. Tilt Brake Knob

$213.69 (Ex VAT) R114702 R114702. Top Plate

$27.86 (Ex VAT) R114747 R114747. Plate Locking Knob

$64.71 (Ex VAT) R114700 R114700. Camera Plate
