701HDV Spare Replacement Parts

Image for illustrative purposes only, variations may differ.

Finding and selecting your part is as easy as 1-2-3

There are no variations of this model,
please skip to step 2 below.

Identify the part using the diagram
Hover or tap the image to zoom in.

Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.

Add accessories to your basket.


1 Model Number


701HDV
SUB-MODELS SHOWN

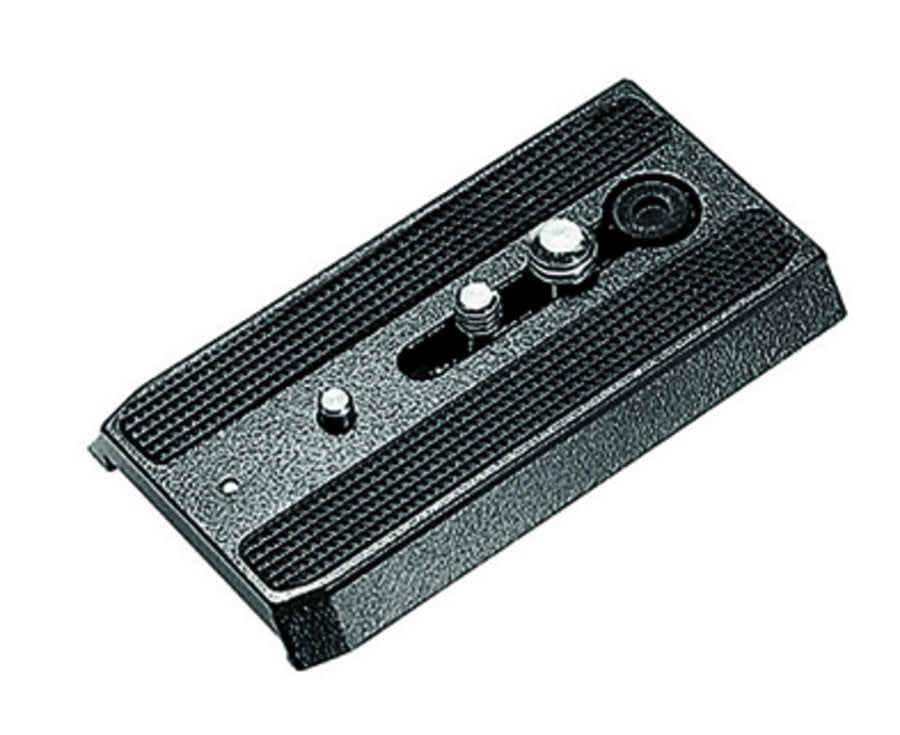

501PL

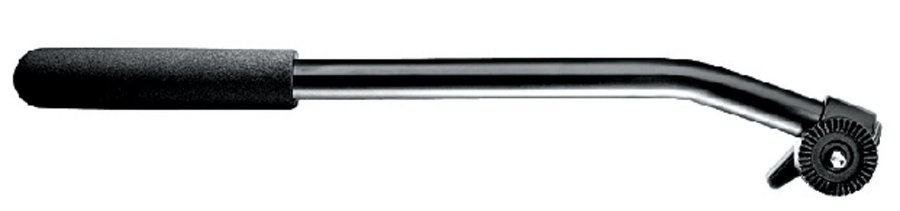

701HLV

2 Identify The Part

Hover over or tap the image to zoom, or download the full PDF

4 Accessories

3 Add The Part To Your Basket

Available Parts. Type the part number below in order to filter this list:

$30.16 (Ex VAT) R3,3511 R3,3511. Fluid/Grease Jar

$62.91 (Ex VAT) R701,202 R701,202. Assembly Main Casting

$6.77 (Ex VAT) R701,216 R701,216. Label 701hdv

$15.30 (Ex VAT) R701,210 R701,210. Assembly Knob

$31.15 (Ex VAT) R701,206 R701,206. Assembly Flange

$6.59 (Ex VAT) R701,06 R701,06. Spring

$11.29 (Ex VAT) R503,89 R503,89. Assembly Bubble

$5.10 (Ex VAT) R701,213 R701,213. Sliding Plate

$30.17 (Ex VAT) R701,201 R701,201. Assembly Disc

$16.93 (Ex VAT) R701,203 R701,203. Assembly Friction Disc

$25.02 (Ex VAT) R701,205 R701,205. Assembly Flange

$5.99 (Ex VAT) R701,211 R701,211. Safety Button

$33.34 (Ex VAT) R701,207 R701,207. Plate

$10.98 (Ex VAT) R701,212 R701,212. Locking Knob

$5.97 (Ex VAT) R701,225 R701,225. Cover

$5.36 (Ex VAT) R701,223 R701,223. Assembly Screw

$7.98 (Ex VAT) R701,208 R701,208. Locking Wedge

$15.23 (Ex VAT) R701,215 R701,215. Assembly Lever

$27.20 (Ex VAT) ART. 701HLV 701HLV. Pan lever for 701HDV heads

$29.94 (Ex VAT) ART. 501PL 501PL. Accessory Plate
