503HDV Spare Replacement Parts

Image for illustrative purposes only, variations may differ.

Finding and selecting your part is as easy as 1-2-3

There are no variations of this model,
please skip to step 2 below.

Identify the part using the diagram
Hover or tap the image to zoom in.

Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.

Add accessories to your basket.


1 Model Number


503HDV
SUB-MODELS SHOWN
501PL

519LV

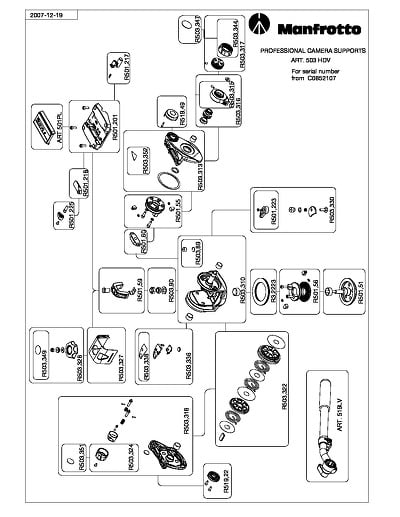

2 Identify The Part

Hover over or tap the image to zoom, or download the full PDF

4 Accessories

3 Add The Part To Your Basket

Available Parts. Type the part number below in order to filter this list:

$43.96 (Ex VAT) R3,2223 R3,2223. Bearing for 503 Head

$22.26 (Ex VAT) R501,56 R501,56. Friction Plate

$35.72 (Ex VAT) R501,51 R501,51. Base Plate

$7.86 (Ex VAT) R503,349 R503,349. Label

$17.80 (Ex VAT) R503,328 R503,328. Assembly Knob

$6.77 (Ex VAT) R503,327 R503,327. Cover

$15.65 (Ex VAT) R503,338 R503,338. Label

$62.22 (Ex VAT) R503,336 R503,336. Electronic Pcb

$6.75 (Ex VAT) R503,351 R503,351. Label

$14.14 (Ex VAT) R503,324 R503,324. Assembly Knob

$72.45 (Ex VAT) R503,318 R503,318. Assembly Flange

$14.41 (Ex VAT) R519,22 R519,22. Ass Locking Casting

$36.97 (Ex VAT) R503,322 R503,322. Assembly Spring Assy

$28.35 (Ex VAT) R501,55 R501,55. Friction Plate

$6.28 (Ex VAT) R501,227 R501,227. Washer

$119.99 (Ex VAT) R503,310 R503,310. Main Casting

$11.29 (Ex VAT) R503,89 R503,89. Assembly Bubble

$37.35 (Ex VAT) R501,201 R501,201. Plate

$6.48 (Ex VAT) R501,217 R501,217. Safety Button

$7.67 (Ex VAT) R519,49 R519,49. Plug

$9.00 (Ex VAT) R503,347 R503,347. Label

$8.05 (Ex VAT) R503,344 R503,344. Knob Cover

$26.04 (Ex VAT) R503,317 R503,317. Assembly Knob

$14.67 (Ex VAT) R503,315 RV4018-2015. Assembly Knob

$30.39 (Ex VAT) R503,316 R503,399. Insert

$9.68 (Ex VAT) R503,352 R503,352. Label

$56.20 (Ex VAT) R503,313 R503,313. Assembly Flange

$9.37 (Ex VAT) R503,90 R503,90. Nut+bearing+washer Assy

$18.48 (Ex VAT) R501,59 R501,59. Pan Equalizer

$19.49 (Ex VAT) R503,330 R501,298. Assembly Lever

$19.49 (Ex VAT) R501,223 R501,298. Assembly Lever

$11.11 (Ex VAT) R501,60 R501,60. Equaliser

$10.49 (Ex VAT) R501,225 R501,225. Lever

$8.66 (Ex VAT) R501,218 R501,218. Locking Wedge

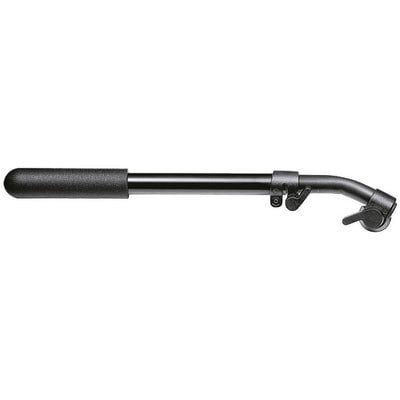

$53.69 (Ex VAT) ART. 519LV 519LV. Pan lever for 503HDV and 519 heads

$10.51 (Ex VAT) R116,137 R116,137. Quick Release Plate Screws 3/8, Pack of 2

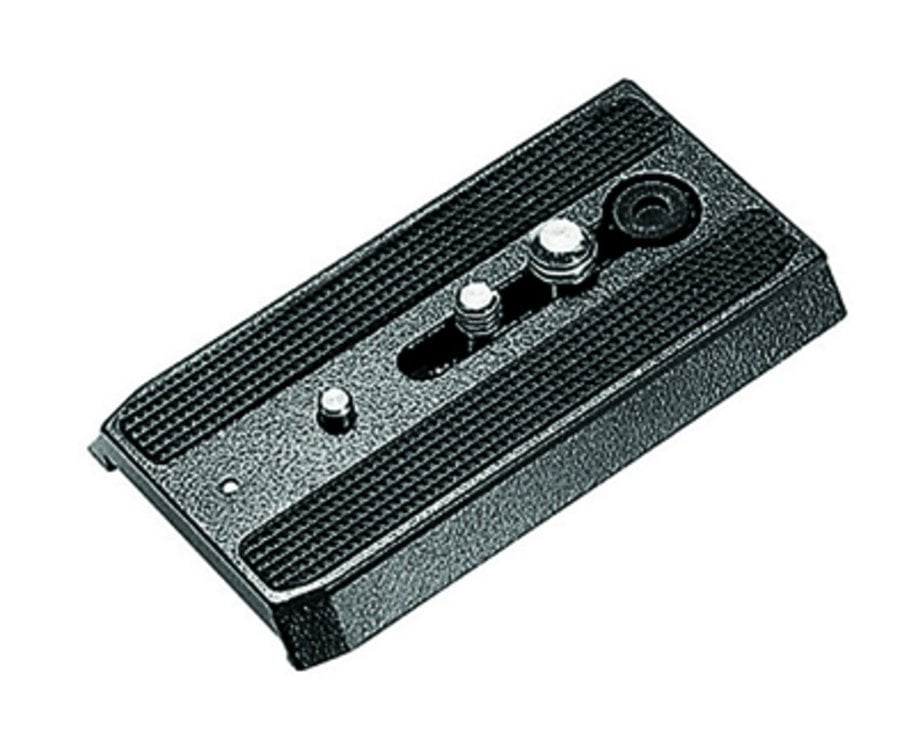

$29.94 (Ex VAT) ART. 501PL 501PL. Accessory Plate

$10.36 (Ex VAT) R116,138 R116,138. Quick Release Plate Screws 1/4 inch. Pack of 2
