190CX3 Spare Replacement Parts

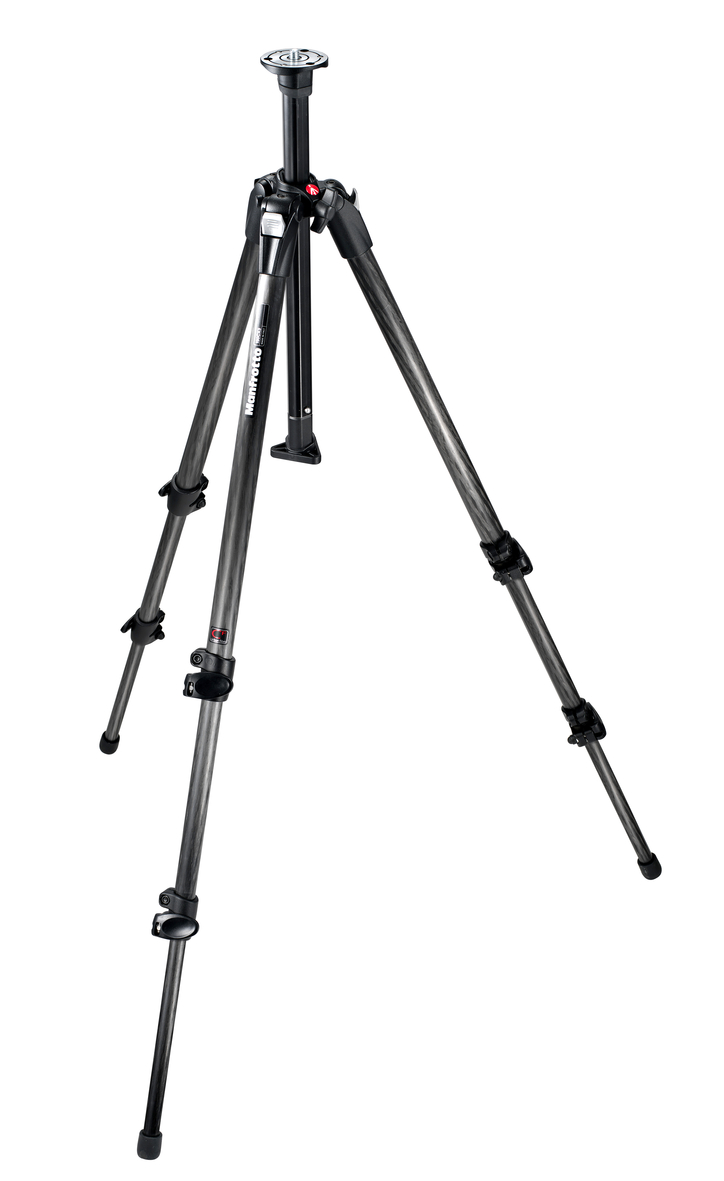

Image for illustrative purposes only, variations may differ.

Finding and selecting your part is as easy as 1-2-3

Select your model number from the tabbed list.
Slight variations exist depending on the age of your product.

Identify the part using the diagram
Hover or tap the image to zoom in.

Add the part to your basket.
You can narrow the list of parts shown by typing in the part number identified in step 2.

Add accessories to your basket.


2 Identify The Part

Model diagrams show here once you have
selected a model variation.

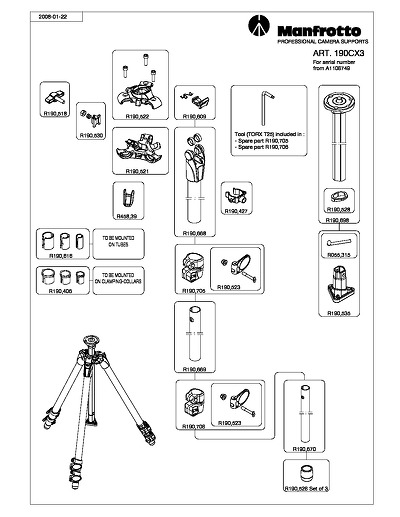

Use this drawing for tripods with a serial number up to A2122146.
The serial number can be found on the inside of one of the legs near to where it pivots:

The only difference in the two versions of this model is the upper and lower casting that the legs fix to. If you are not changing the upper or lower casting then you can order from either drawing.

Hover over or tap the image to zoom, or download the full PDF

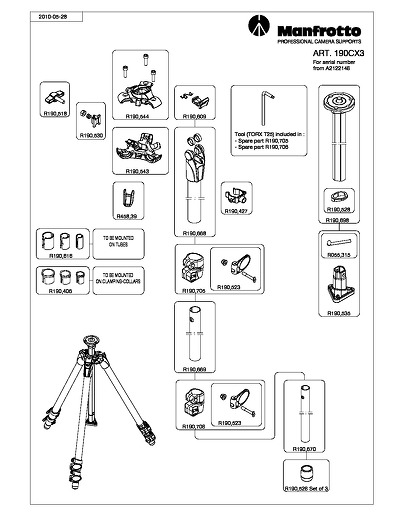

Use this drawing for tripods with a serial number greater than A2122146.
The serial number can be found on the inside of one of the legs near to where it pivot:

The only difference in the two versions of this model is the upper and lower casting that the legs fix to. If you are not changing the upper or lower casting then you can order from either drawing.

Hover over or tap the image to zoom, or download the full PDF

4 Accessories

3 Add The Part To Your Basket

Available Parts. Type the part number below in order to filter this list:

Parts show here once you have
selected a model variation.

$7.86 (Ex VAT) R190,518 R190,518. Knob

$38.70 (Ex VAT) R190,670 R190,670. Carbon Tube

$11.03 (Ex VAT) R190,526 R190,526. Foot ( Set Of 3 )

$5.67 (Ex VAT) R190,528 R190,528. Rubber Washer

$43.20 (Ex VAT) R190,698 R190,698. Centre Column

$7.37 (Ex VAT) R055,315 R055,315. Spring Clip for 3021n

$12.96 (Ex VAT) R190,535 R190,535. Assembly Disc

$27.40 (Ex VAT) R190,706 R190,706. Ass Sleeve

$44.10 (Ex VAT) R190,669 R190,669. Carbon Tube

$9.07 (Ex VAT) R190,530 R190,530. Insert With Nut And Spring

$19.01 (Ex VAT) R190,522 R190,544. Top Main Casting

$13.95 (Ex VAT) R190,521 R190,521. Lower Main Casting

$5.48 (Ex VAT) R458,39 R458,39. Ass Hook

$11.30 (Ex VAT) R190,609 R190,609. Stop Push Button

$5.33 (Ex VAT) R190,427 R190,427. Wrench, replaces R055,352

$29.11 (Ex VAT) R190,705 R190,705. Ass Sleeve

$11.26 (Ex VAT) R190,523 R190,523. Ass Lever

$9.45 (Ex VAT) R190,616 R190,616. Ass Bush

$9.36 (Ex VAT) R190,406 R190,406. Bush Set

$17.99 (Ex VAT) R190,543 R190,543. Lower Main Casting

$58.82 (Ex VAT) R190,668 R190,668. Ass Sleve

$22.08 (Ex VAT) 190LAA 190LAA. Low Angle Adaptor, replaces R190,330

$173.69 (Ex VAT) 556B 556B. Levelling centre column for 190 series

$29.94 (Ex VAT) 230 230. Snow Shoes

$47.45 (Ex VAT) 160SPK3 160SPK3. Spiked Foot ( Set Of 3 )

$52.44 (Ex VAT) 160SCK3 160SCK3. Suction Cup Foot ( 3 )

$7.09 (Ex VAT) R3,0020 R3,0020. Grub Screws for Centre column Top Disc. Pack Of 5

$7.86 (Ex VAT) R190,518 R190,518. Knob

$5.67 (Ex VAT) R190,528 R190,528. Rubber Washer

$43.20 (Ex VAT) R190,698 R190,698. Centre Column

$7.37 (Ex VAT) R055,315 R055,315. Spring Clip for 3021n

$12.96 (Ex VAT) R190,535 R190,535. Assembly Disc

$19.01 (Ex VAT) R190,544 R190,544. Top Main Casting

$17.99 (Ex VAT) R190,543 R190,543. Lower Main Casting

$11.03 (Ex VAT) R190,526 R190,526. Foot ( Set Of 3 )

$38.70 (Ex VAT) R190,670 R190,670. Carbon Tube

$27.40 (Ex VAT) R190,706 R190,706. Ass Sleeve

$9.07 (Ex VAT) R190,530 R190,530. Insert With Nut And Spring

$5.48 (Ex VAT) R458,39 R458,39. Ass Hook

$11.30 (Ex VAT) R190,609 R190,609. Stop Push Button

$5.33 (Ex VAT) R190,427 R190,427. Wrench, replaces R055,352

$29.11 (Ex VAT) R190,705 R190,705. Ass Sleeve

$11.26 (Ex VAT) R190,523 R190,523. Ass Lever

$9.45 (Ex VAT) R190,616 R190,616. Ass Bush

$9.36 (Ex VAT) R190,406 R190,406. Bush Set

$44.10 (Ex VAT) R190,669 R190,669. Carbon Tube

$58.82 (Ex VAT) R190,668 R190,668. Ass Sleve

$29.94 (Ex VAT) 230 230. Snow Shoes

$22.08 (Ex VAT) 190LAA 190LAA. Low Angle Adaptor, replaces R190,330

$47.45 (Ex VAT) 160SPK3 160SPK3. Spiked Foot ( Set Of 3 )

$52.44 (Ex VAT) 160SCK3 160SCK3. Suction Cup Foot ( 3 )

$173.69 (Ex VAT) 556B 556B. Levelling centre column for 190 series

$7.09 (Ex VAT) R3,0020 R3,0020. Grub Screws for Centre column Top Disc. Pack Of 5
